Desciption

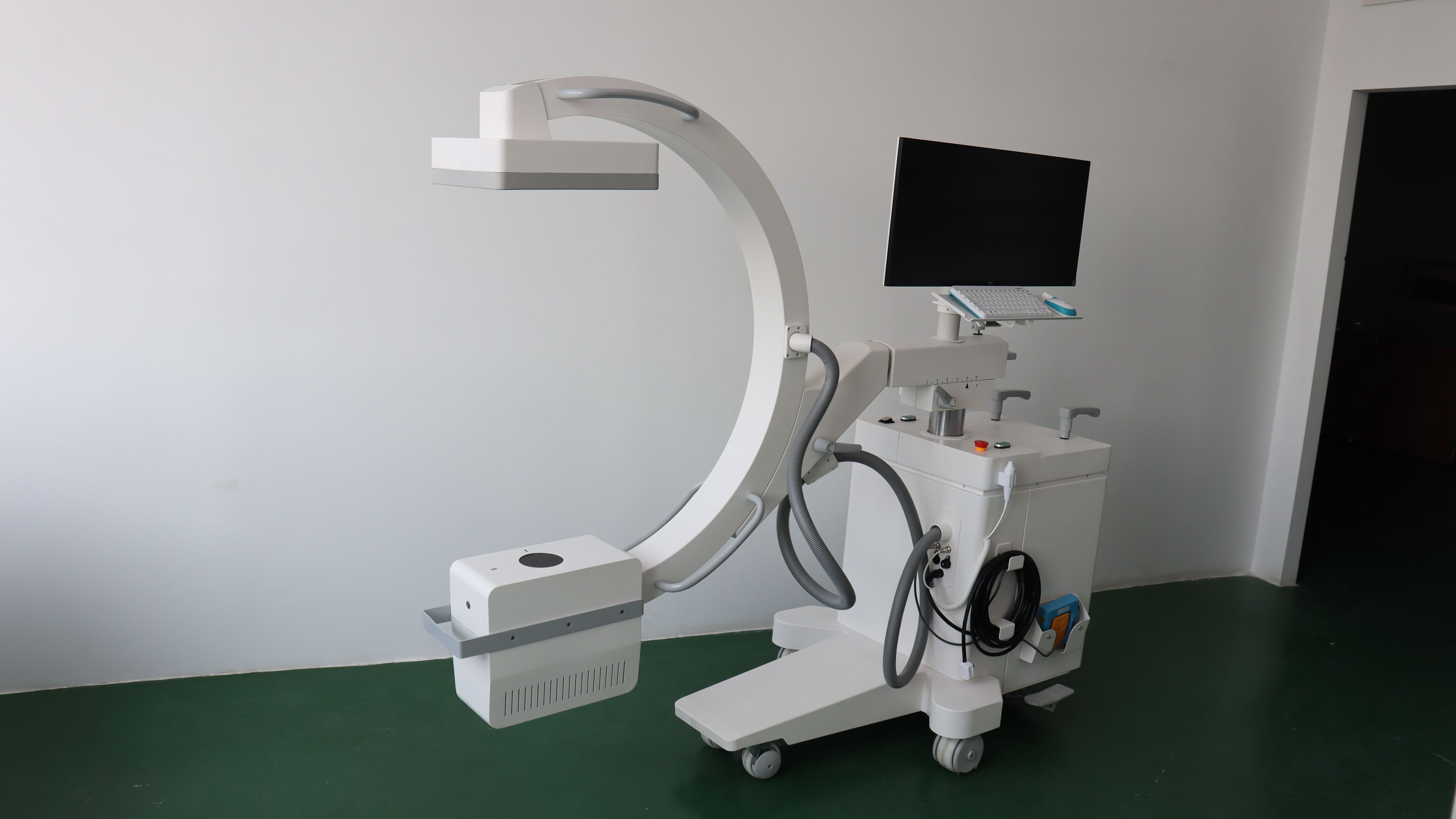

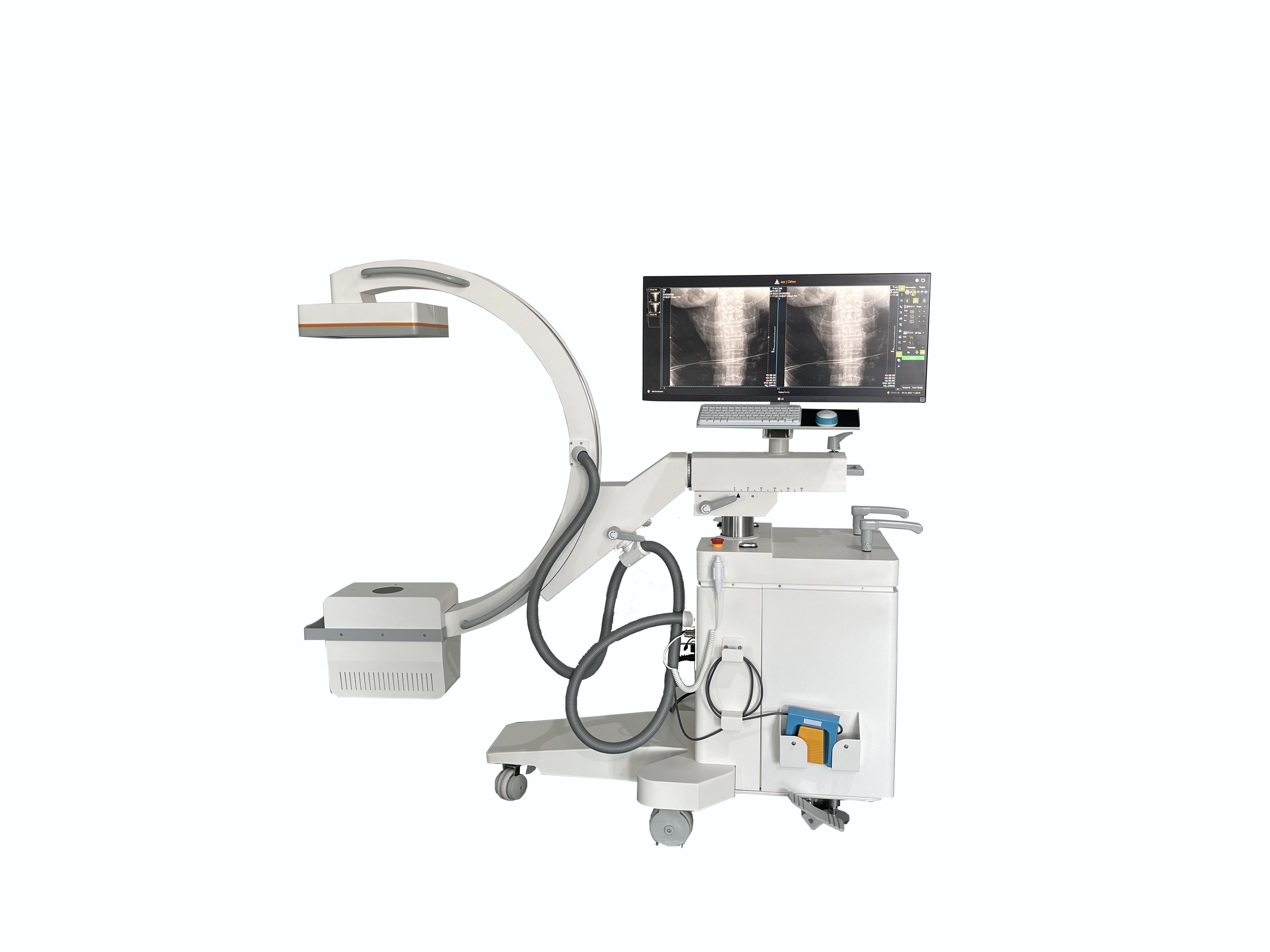

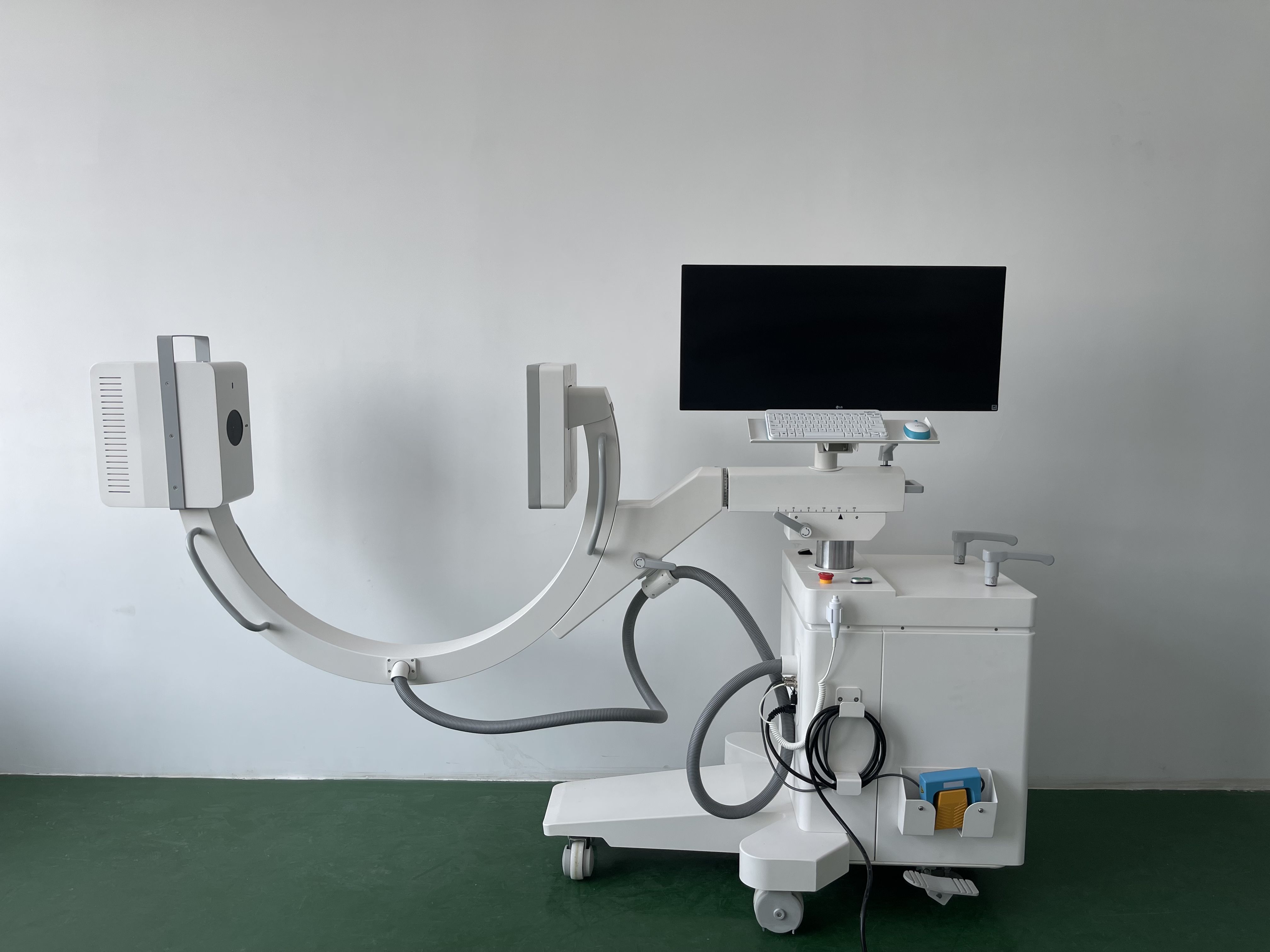

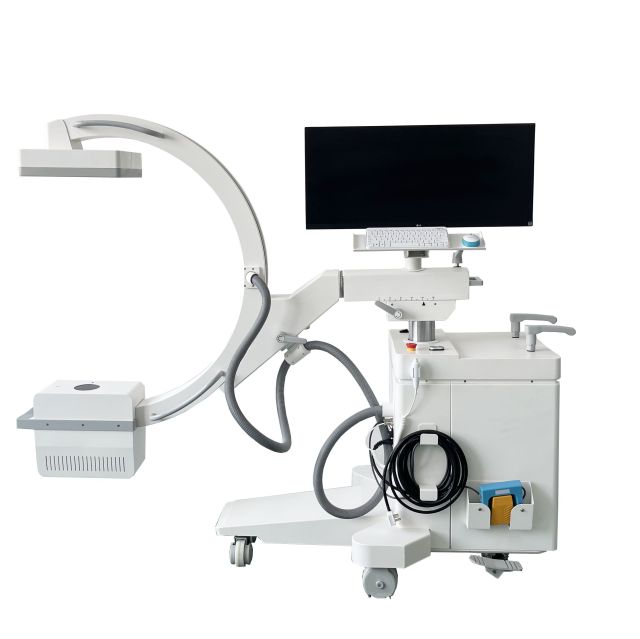

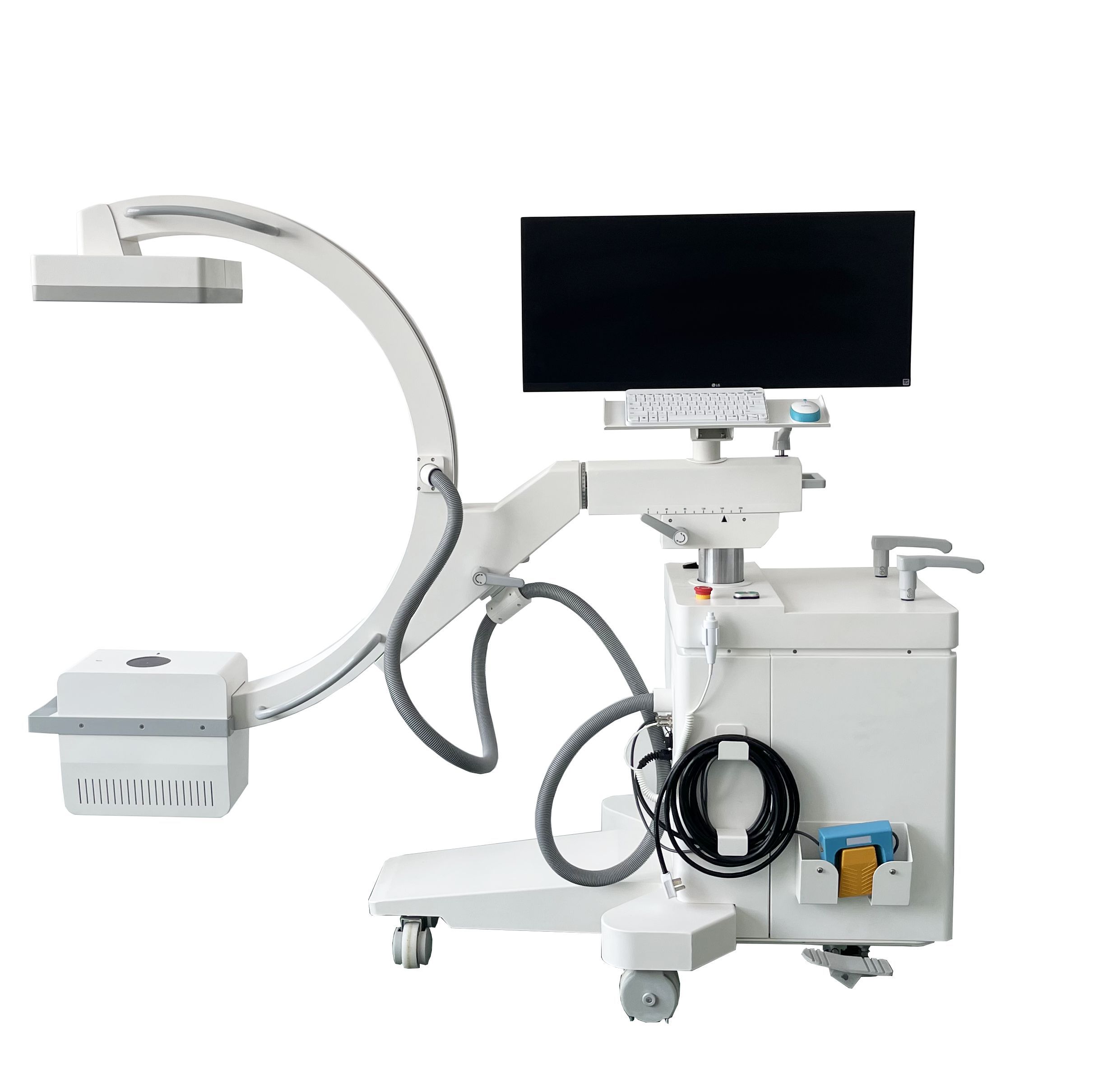

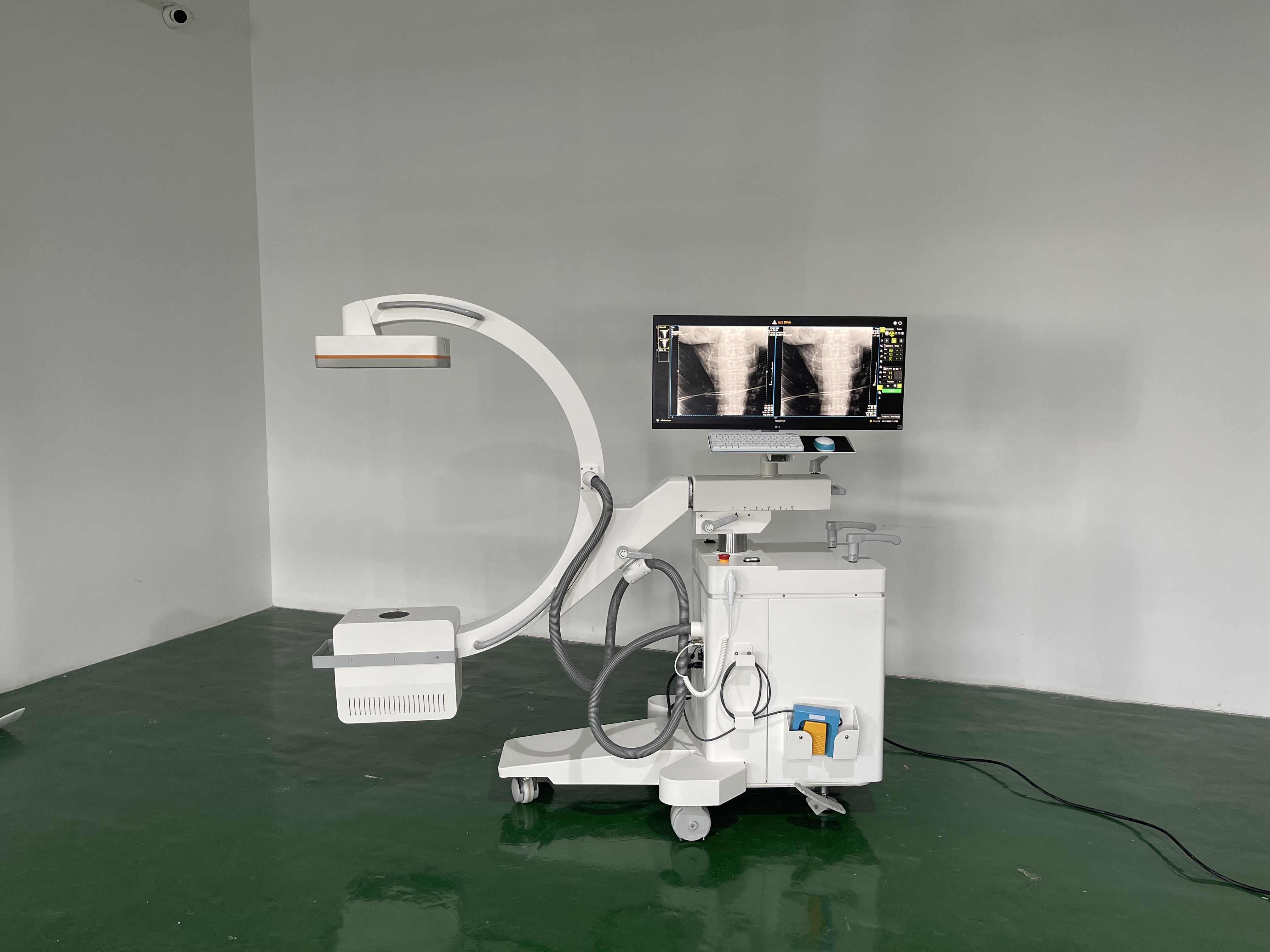

High Quality 5KW/15KW Surgical Imaging System Digital Fluoroscopy X Ray Flat-panel Detector Mobile C-arm X-ray Machine
Features
◆With a compact appearance, and easy to operate.
◆High -frequency generator emits high-quality and hard x-rays with strong penetrability.
◆21cm*21cm flat panel detector, which has bigger image size than image intensifier.
◆Amorphous silicon flat panel makes the surgery more accurate for the clinical operation due to high density resolution and spatial resolution.
◆High stability oil-cooled heat-resistant combined tube, support long-time image acquisition in surgery, satisfy the requirement of long-time operation.
◆34’’ monitor project real-time video and reference images simultaneously for quicker diagnosis and inference. ◆Microcomputer control system with self-diagnostic function and automatic protection.
◆Modular design offers error codes and reset button.
◆Double CPU control improves the stability and safety of the equipment.
◆Large opening design provides larger free diagnosis spaces, and maximizes the efficiency of surgery environment.
◆Hand switch, foot switch and remote control make sure that you could do exposure inside and outside the operating theatre.
◆PACS connectivity with DICOM 3.0 is convenient to send, receive and print images..

Name: MCXINC Mobile C-arm X-ray Machine
Brand: GUANGZHOU MEDCARE MEDICAL EQUIPMENT CO., LTD.
SKU: MCXINC
Availability: InStock
Rating: 5 (1 reviews)

Specifications

Ambient Conditions

Ambient temperature	10℃～40℃
Relative humidity	30％～75％
Atmospheric	70～106kPa

X-ray Generator

Output power	15KW
Current of fluoroscopy	0.3-10mA
Current of radiography	0.5-150mA
Pulsed mA	32mA
Voltage	40kV-125kV
mAs range	0.2-100mAs
ms range	10-1600ms

X-ray Tube

Focal Spot value	0.3mm /0.6mm
Rotating anode speed	2800rmp
Anode heat storage	300KHU
Housing Heat Storage Capacity	1200KHU

Flat-panel Detector

Size	21*21cm
Detector Technology	Amorphous Silicon
Scintillator	CsI
Image resolution	2.5lp/mm
Frame rate	MAX 30frames/sec
Active pixels	1024*1024 pixels
A/D conversion	16 bit
Pixel Pitch	205 μm
Faster image capture speed	The image will be displayed on the monitors in 0.8S after exposure.

Grid

Brand	JPI
Ratios	10:1
Density	60l/cm
SID	100cm

C-arm Unit

SID	1000mm
Free space(Tube to I.I)	820mm
Arc depth	640mm
Vertical movement	0-400mm(Electric)
Horizontal movement	0-200mm(Manual)
Planning movement	±15°(Manual)
Orbital movement	-30°-+90°(Manual)
C-arc rotation	±180°

Workstation & Software

Monitor	One set 34’’ LCD HD monitor
Computer memory	500G mass storage.
CPU	2.7GHZ
Software	The image can be step-less rotated continuously for 360°
	Flip the Reference image horizontally or vertically
	Applies various Gamma values for each image
	Last frame frozen
	Images can be saved in different formats, such as JPG, DCM, RAW, etc.
	DICOM 3.0
	Data communication
	Data storage etc.
