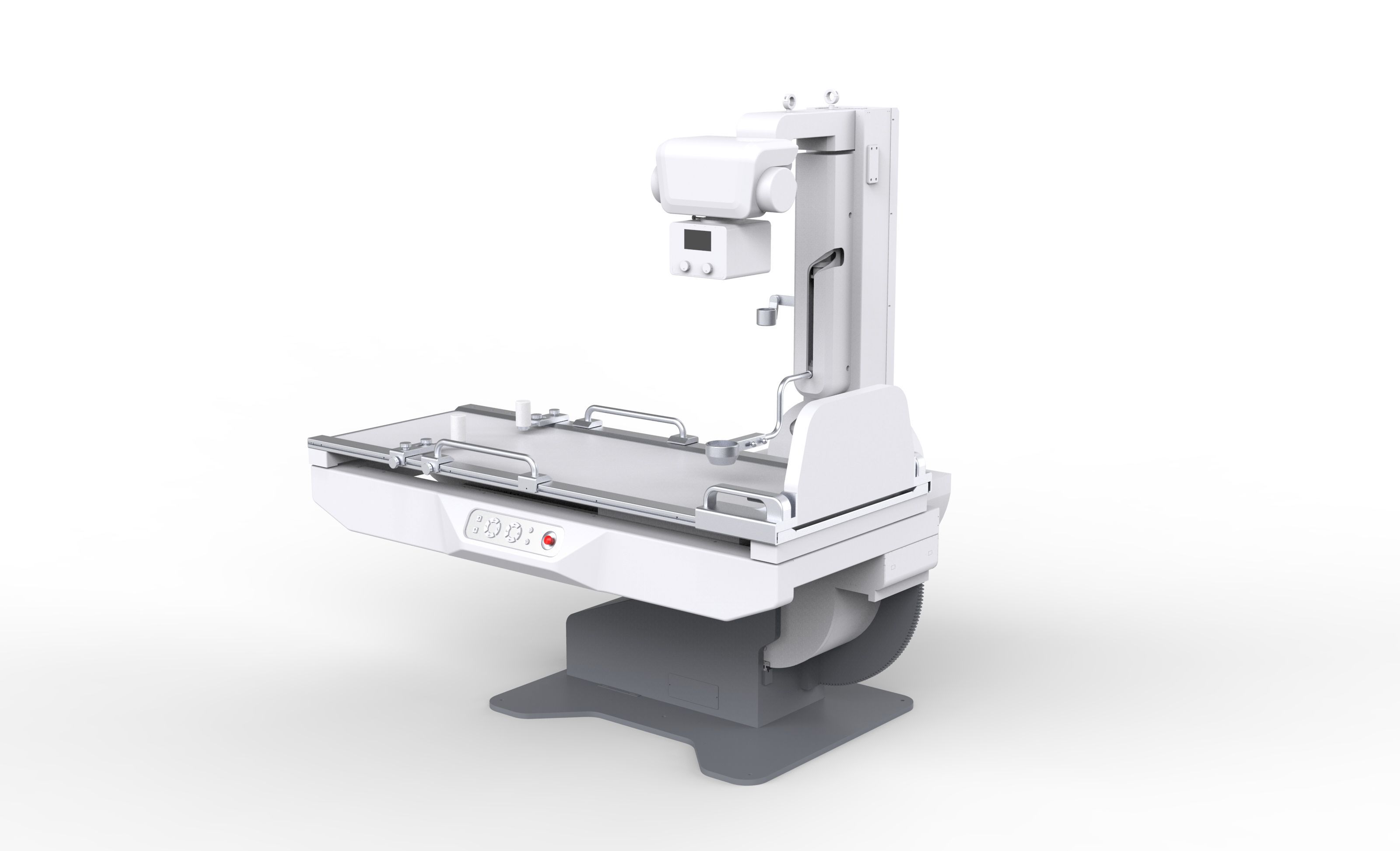

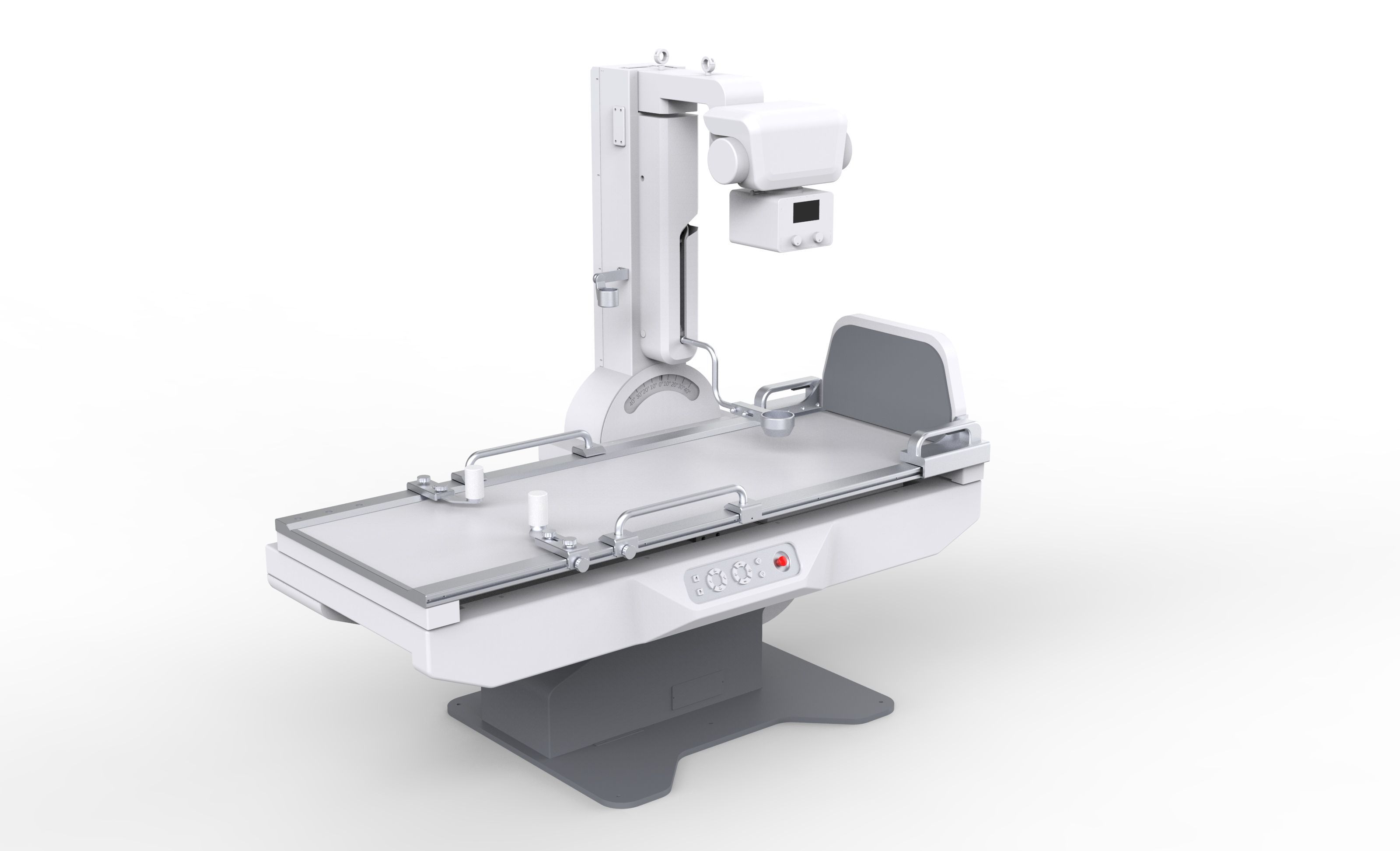

IND Multi-purpose R/F System is a flexible and compact system with various functions such as radiography, fluoroscopy, stomach examination,gastrointestinal tract examination, etc. Its wide-range movements and auto DR operations reduce the patient movements and make the operation easier and faster.
Fluoroscopy: Dynamic a-Si flat panel detector is designed for real-time imaging. The 17×17-inch image sensor has direct deposition CsI , which provides excellent low-dose imaging at frame rates up to 30 fps. IND is a digital fluoroscopic X-ray system, which can be used in both general radiography, fluoroscopy for gastrointestinal, urolog applications.
Radiography: Retractable tube arm, max SID is 1800mm. It could provide digital radiography of various body parts without blind area.
Features
◆High-performance and high-capacity with big focus and high speed, which is suitable for long-time diagnosis.
◆High inverting frequency and high voltage generator ensures output of constant DC.
◆Dynamic flat panel detector brings digital radiography and fluoroscopy of various positions directly.
◆ Strong and weak electricity separation and excellent EMC characteristics.
◆High density grid further improves X-ray quality and provides images with good effect.
◆Designed for low-dose fluoroscopic imaging
Specifications
Ambient Conditions
|
Ambient temperature |
10℃～40℃ |
|
Relative humidity |
30％～75％ |
|
Atmospheric |
70～106kPa |
X-ray Generator
|
Output power |
50KW |
|
Frequency |
500kHz High frequency with inverter technology |
|
Current (fluoroscopy) |
0.5～6.0mA |
|
Voltage (fluoroscopy) |
40kV～125kV |
|
Current (radiography) |
10mA~630mA |
|
Voltage (radiography) |
40kV~150kV |
|
Exposure time |
1～6300ms |
|
mAs |
0.1mAs~630mAs |
X-ray Tube
|
Anode type |
Rotating Anode |
|
Focal Spot value |
0.6mm /1.2mm |
|
Maximum voltage |
150KV |
|
Revolving speed of anode |
2800rpm |
|
Inherent filtration |
1.0mmAl |
|
Anode heat storage capacity |
300kHU |
|
Maximum cooling rate of anode |
870W |
|
Housing heat storage capacity |
900kJ |
X-ray detector(Flat Panel Detector)
|
Type |
Amorphous Silicon |
|
Scintillator |
Cesium Iodide |
|
Active Area |
17x17Inch(43cm*43cm) |
|
Active Pixel |
3072 × 3072 |
|
Pixel Pitch |
139um |
|
Limiting resolution |
36Lp/cm |
|
Data acquisition time |
≤2s |
Collimator
|
Type |
Electric and multileaf collimator |
|
Power |
150W; 24VAC 1 |
|
Lamp timer |
Automatic illumination with timer for lamp(30S) |
|
Filtration |
1.2mmAL |
Mobile patient table
|
Type |
Table for gastrointestinal imaging |
|
Tabletop lateral movement |
240mm(-120mm～+120mm) |
|
Rotating range |
-20°~+90° |
Mechanical movement
|
SID |
1000mm～1800mm |
|
Detector Cassette movement |
1100mm |
Workstation
|
CPU |
Intel i5 |
|
Memory |
8GB |
|
HDD |
500GB |
|
Monitor |
24’’LCD |
|
DICOM3.0 |
Query for integration with any PACS |
|
Functions |
Import/export function |
|
|
Image info |
|
|
Management of patient info |
|
|
Post processing |
|
|
Measurement etc. |
