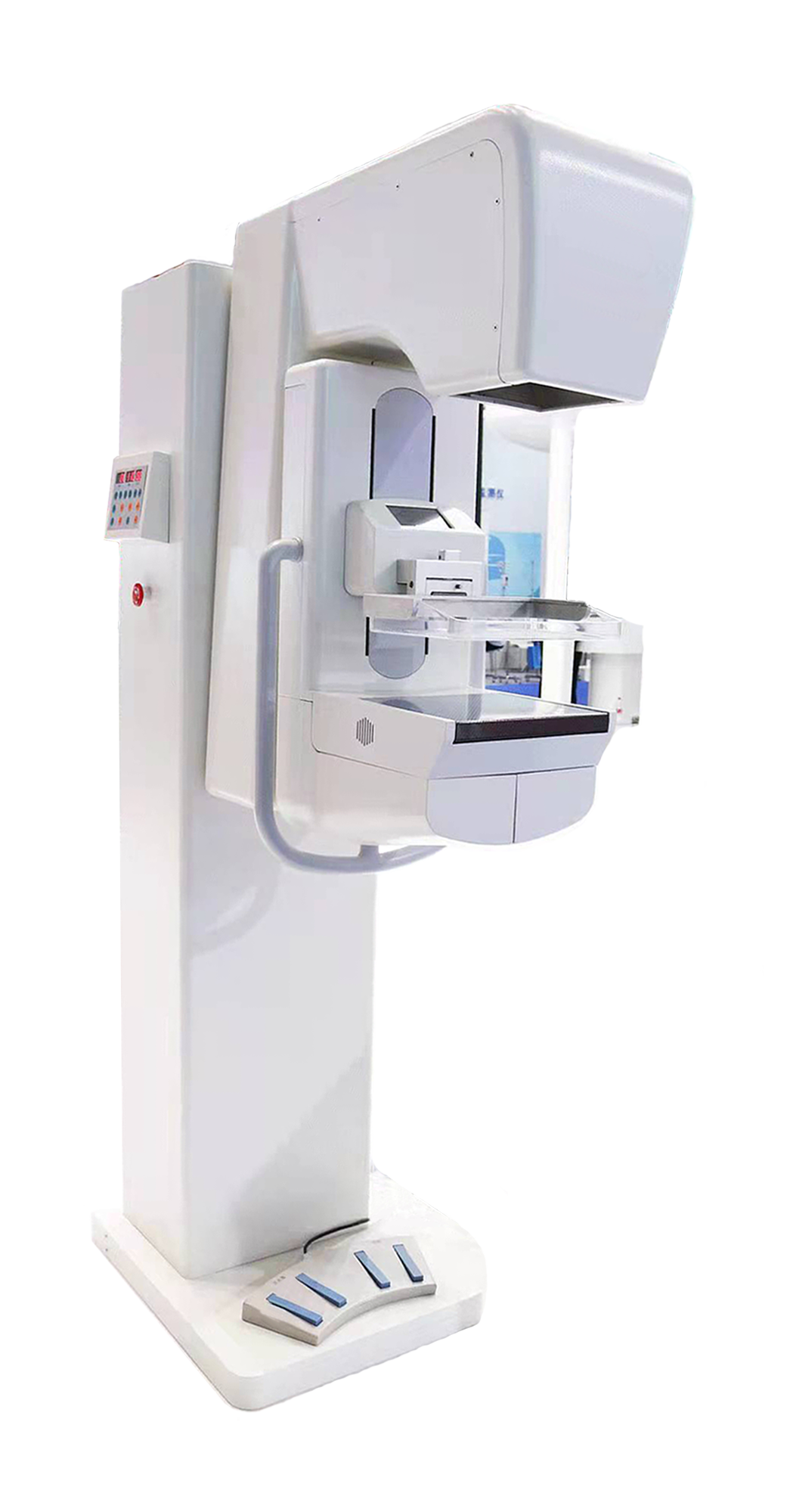

Features
◆Professional mammography x-ray tube from Italian IAE with molybdenum provides extremely small focus spot, and owns high heat capacity. It guarantees high quality images and long working time.
◆Self R&D 40kHz high voltage generator uses dual-inverter technology, guaranteeing the stability of X-Ray, largely improving the clarity and quality of images with low dose.
◆Unique CMOS flat panel detector provides high-resolution images as it is sensitive to X-ray.
◆Self R&D ‘Console’ software with national patent, provides strong capabilities of post processing. It has leading post-processing algorithm of breast, which could bring you perfect mammary images.
◆27’’ LCD display.
Specifications
Ambient Conditions
|
Ambient temperature |
10℃～40℃ |
|
Relative humidity |
30％～75％ |
|
Atmospheric |
70～106kPa |
X-ray Generator
|
Output power |
5.0KW |
|
Frequency |
80-200KHZ |
|
Current |
10-200mA |
|
Voltage |
20-50KV |
|
Exposure time |
5-10000s |
|
mAs |
0.5mAs-600mAs |
|
Self-diagnostic system |
Tube overload protection |
X-ray Tube
|
Brand |
IAE (Italy) |
|
Anode type |
Rotating Anode |
|
Focal spot value |
0.1mm /0.3mm |
|
Maximum voltage |
40KV |
|
Anode heat storage capacity |
300KHU |
|
House heat storage capacity |
426KHU |
|
Target material |
Molybdenum |
|
Anode rotation speed |
10000rpm |
|
Maximum anode heat dissipation rate |
500W |
X-ray detector( Flat Panel Detector)
|
Scintillator |
Cesium Iodide |
|
Active area |
235*290mm |
|
Active pixel |
2762*3408 |
|
Pixel pitch |
85um |
|
AD Conversion(bit) |
16 |
|
Spatial resolution |
60Lp/cm |
Mechanical Device
|
SID |
650mm |
|
Exposure field |
240mm*300mm(Maximum) |
|
Up-down movement of c-arm |
≥600mm |
|
Rotational angles of c-arm |
-90°～+90°(Electromagnetic lock) |
|
Rotational angles of tube |
-30°～+30° |
Compression Paddle
|
Movement type |
Electric |
|
Up-down movement range |
≥210mm |
|
Size of compression paddle |
260mm*180mm |
|
Pressure range |
0～20kg (0.1kg step) |
Workstation
|
Dual-core CPU |
3.3GHz |
|
Memory |
4GB |
|
HDD |
500GB |
|
Discrete Graphics |
1920*1200 |
|
Monitor |
27’’ 3.5M LCD |
|
DICOM3.0 |
Query for integration with any PACS |
|
Functions |
Import/export function |
|
|
Image info |
|
|
Management of patient info |
|
|
Post processing |
|
|
Measurement etc. |
