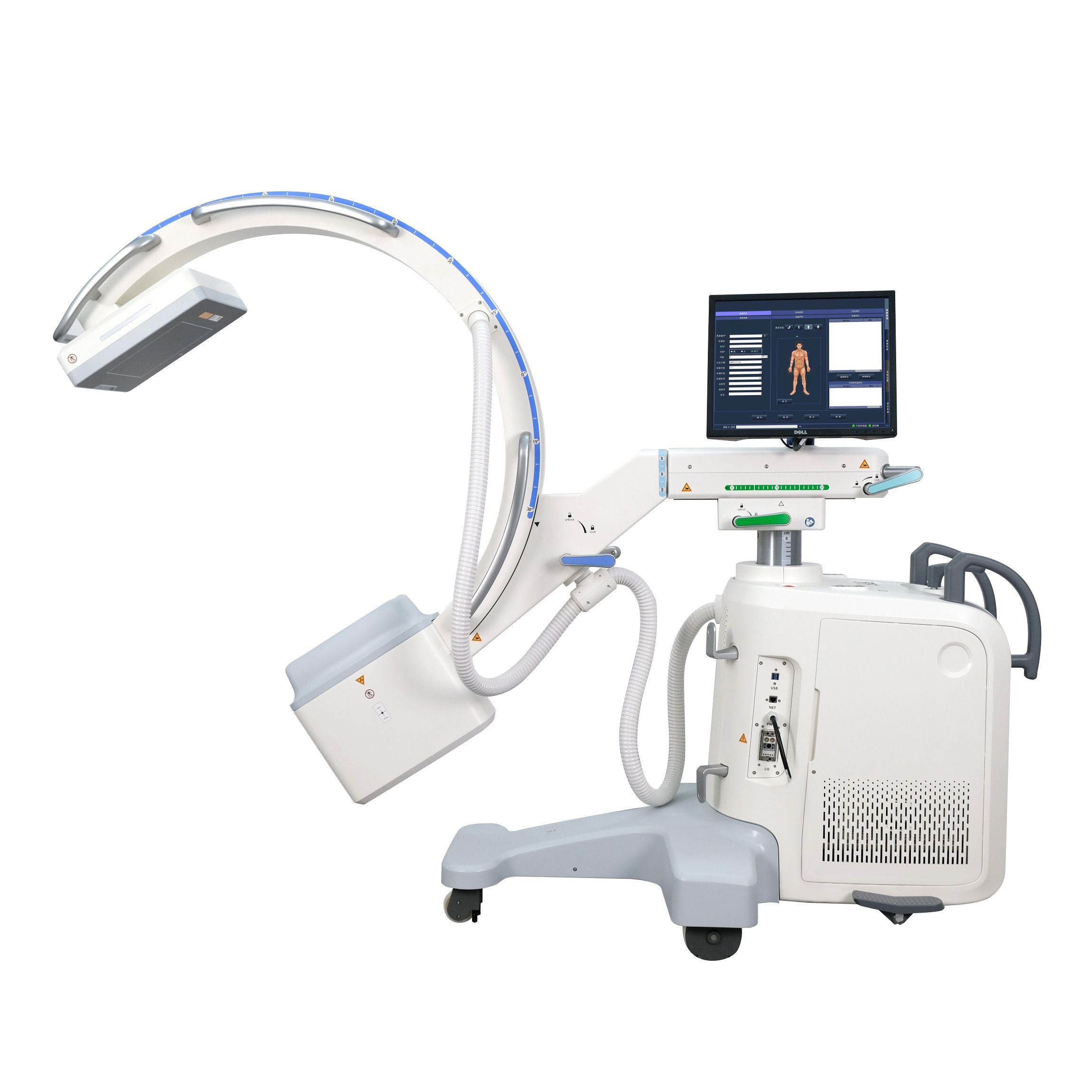

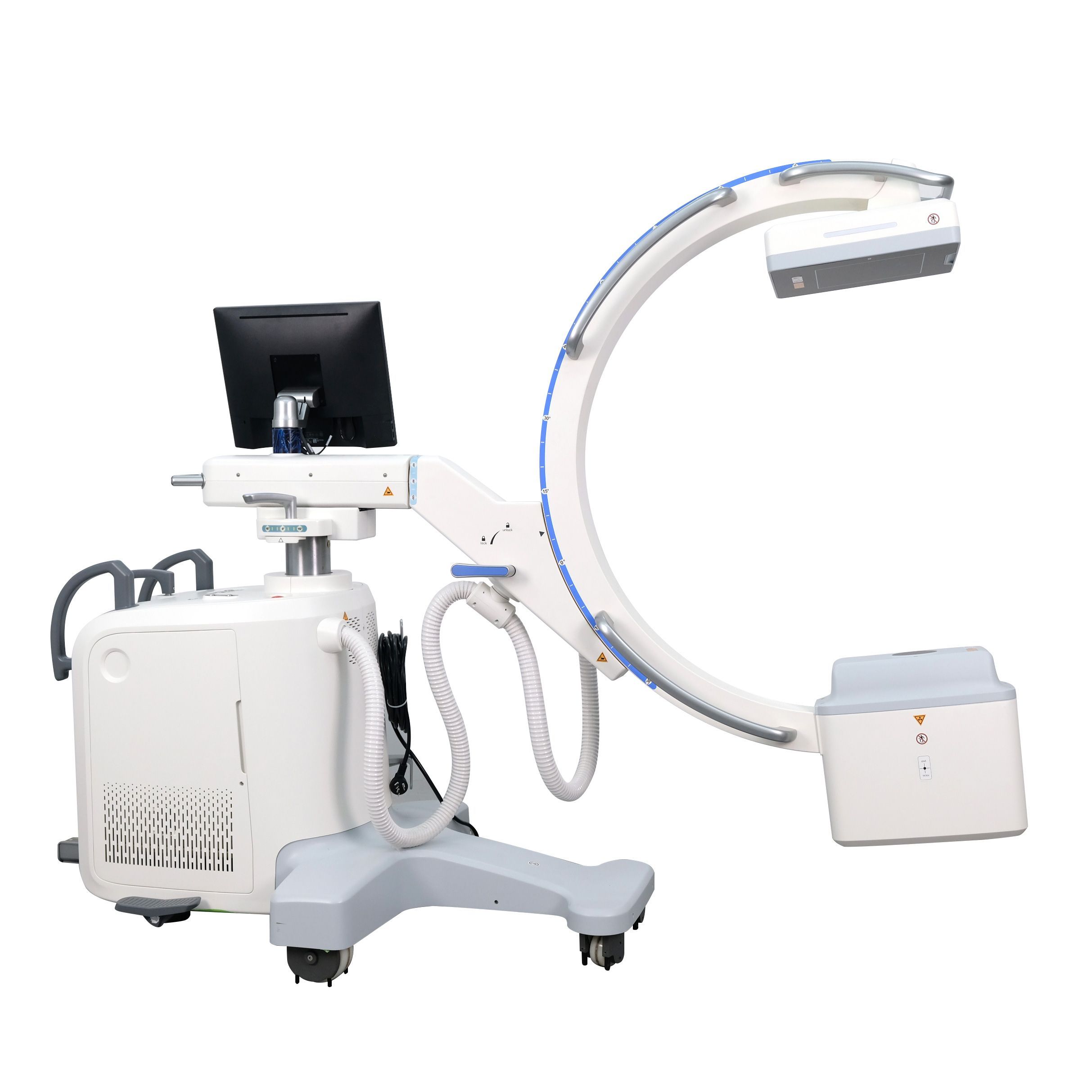

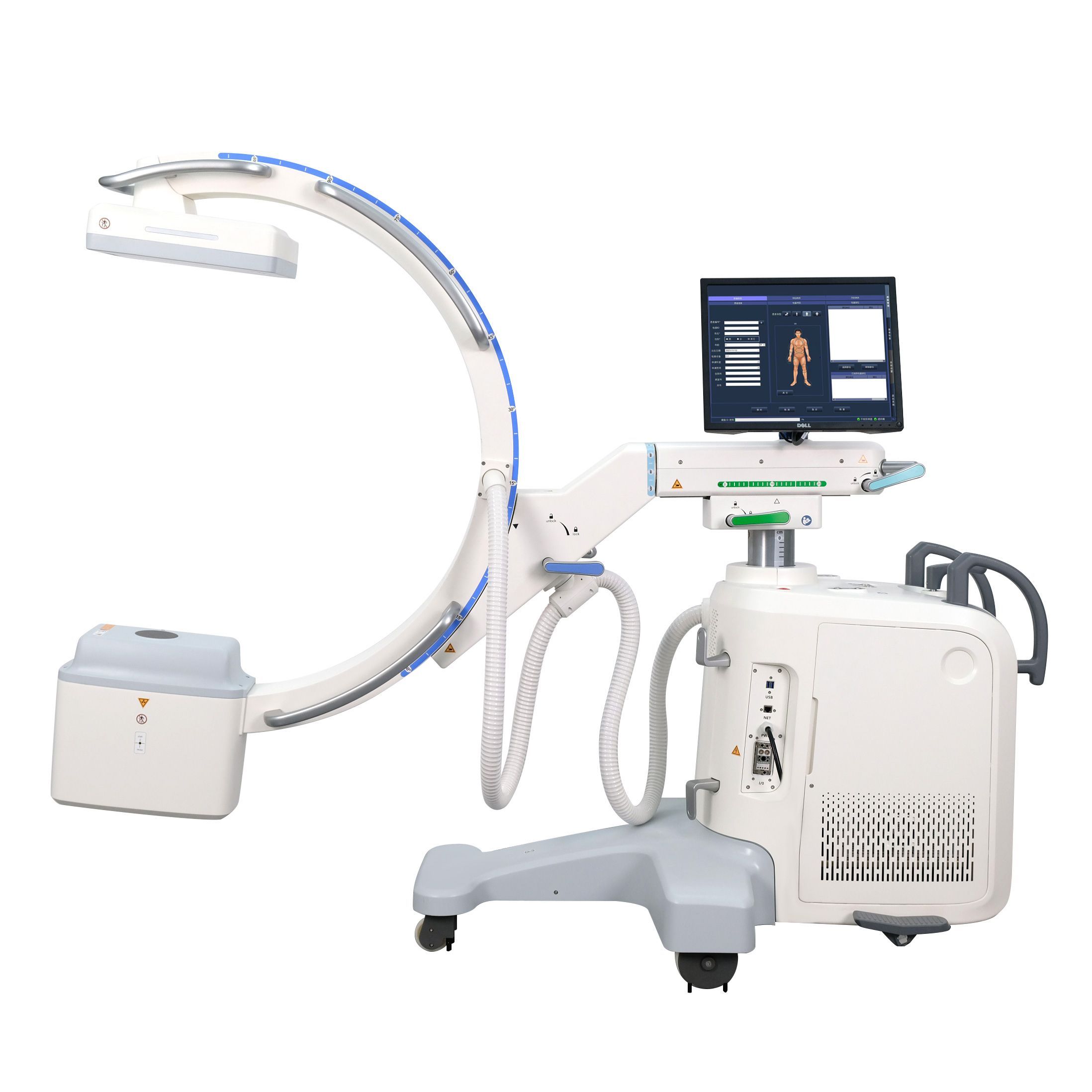

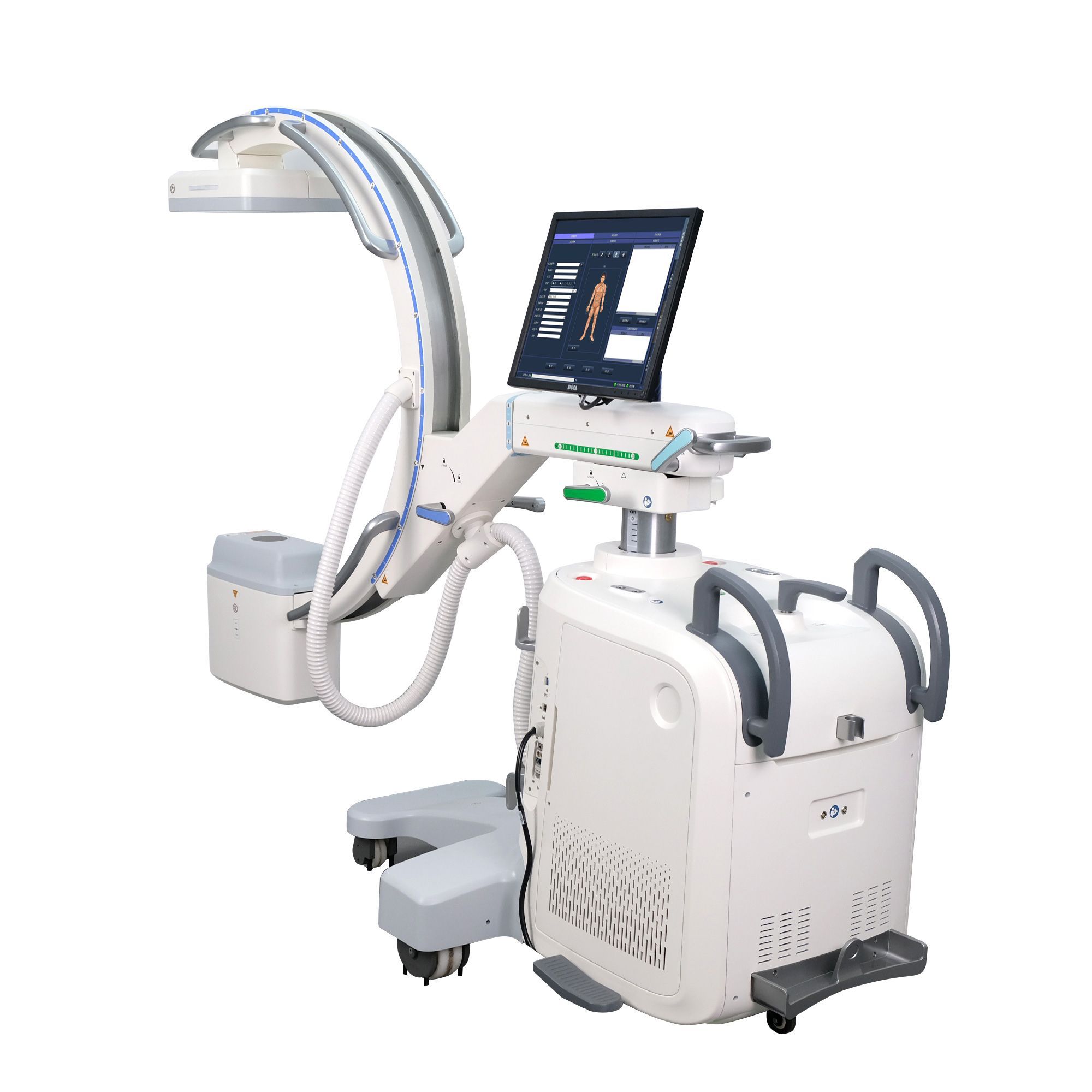

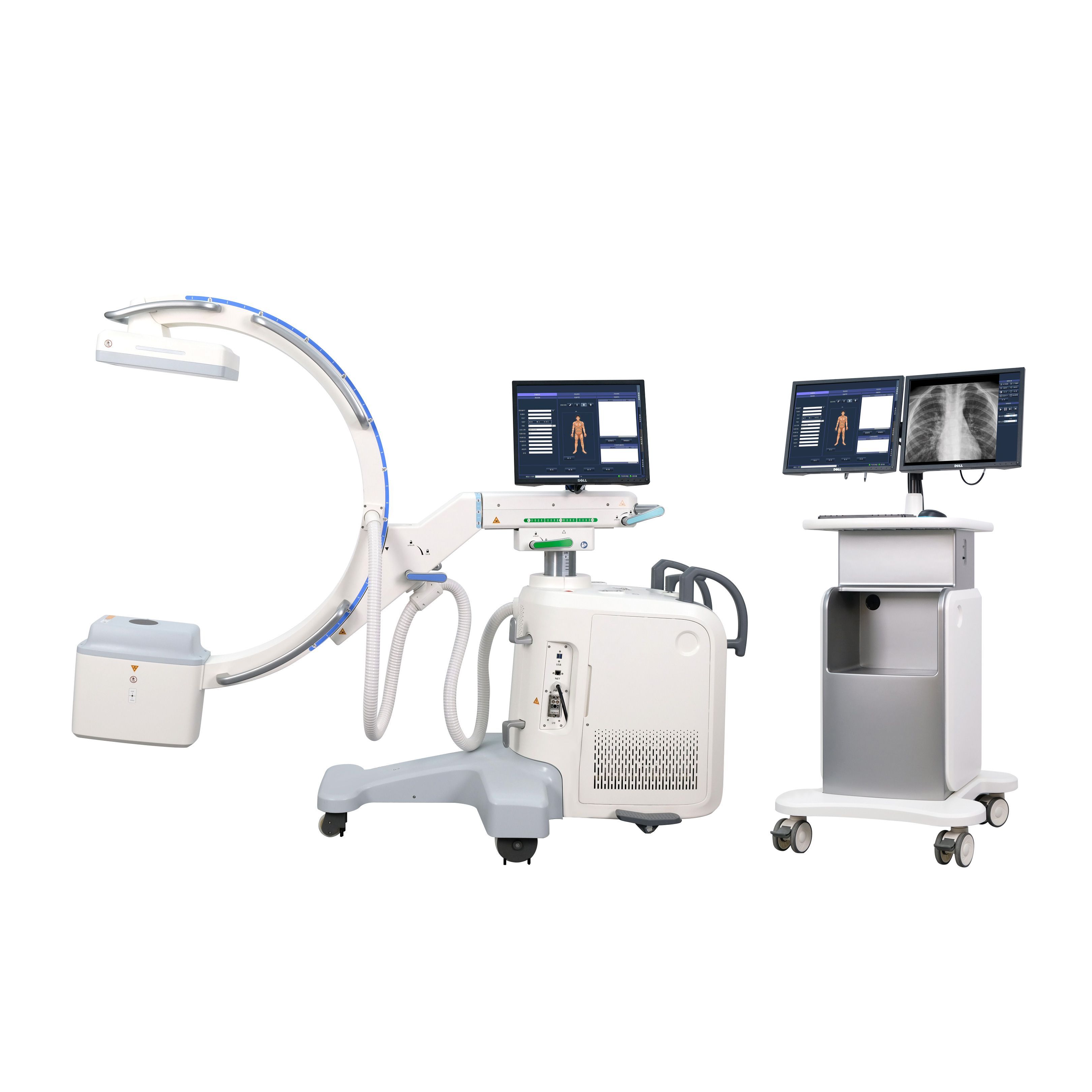

MEDCARE 5.0kW Medical High Frequency C-arm X-ray System, known as real-time fluoroscopy in surgery, is widely used in the following areas:
1, orthopedics: bone, reset, nailing
2, surgery: to remove foreign bodies, heart catheter, implantation of pacemakers, part of the interventional treatment, part of the imaging and Local photography and body work.
Fetures:
1,small radiation dose, low risk of infection, small footprint easy to move .
2,With automatic exposure control, direct fluoroscopy is possible without pre-setting in continuous fluoroscopy and pulsed fluoroscopy.
3, Because of the 360 self-balancing frame , YSCM-0501 can hover at any angle, which is convenient for intraoperative positioning and can avoid sudden sliding causing surgical accidents.
|
Detector |
|
|
Resolution |
2.4 lp/mm |
|
Active Matrix |
1024 × 1024 pixels |
|
Pixel Pitch |
205μm |
|
Removable grid |
Yes |
|
Active area |
210mm*210mm |
|
Interface |
1G Ethernet |
|
Generator |
|
|
Power/功率 |
5 kW |
|
KV |
40~125 kV |
|
|
40~110 kV |
|
mA |
Continuous:6.3mA |
|
|
Pulsed :32mA |
|
|
Digital spot:100mA |
|
ms |
10ms-1600ms |
|
Mas |
0.2mAs-100mAs |
|
X-ray Tube |
|
|
Type |
Rotating |
|
Focal spots |
0.3/0.6 mm |
|
C-arm |
|
|
SID |
100cm |
|
Free space in arc |
78.4cm |
|
Depth in arc |
64cm |
|
Orbital rotation |
150° (117°/-33°) |
|
Lateral rotation |
360° (±180°) |
|
Wig/wag |
±15° |
|
Horizontal travel |
20cm |
|
Vertical travel |
40cm |
|
Mainframe |
|
|
Length |
188.6cm |
|
Height |
156.3cm |
|
Width |
85.3cm |
|
Weight |
280kg |
|

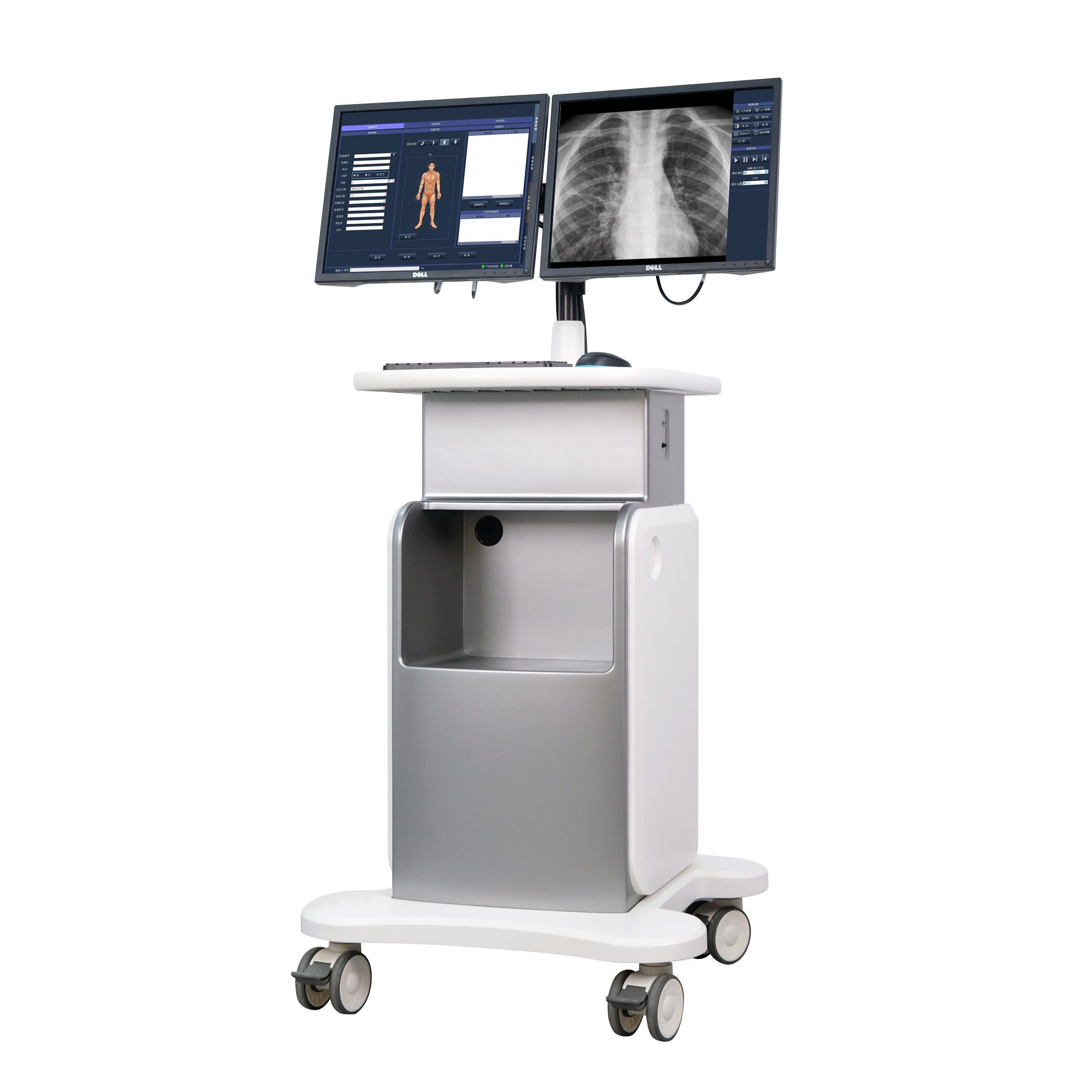

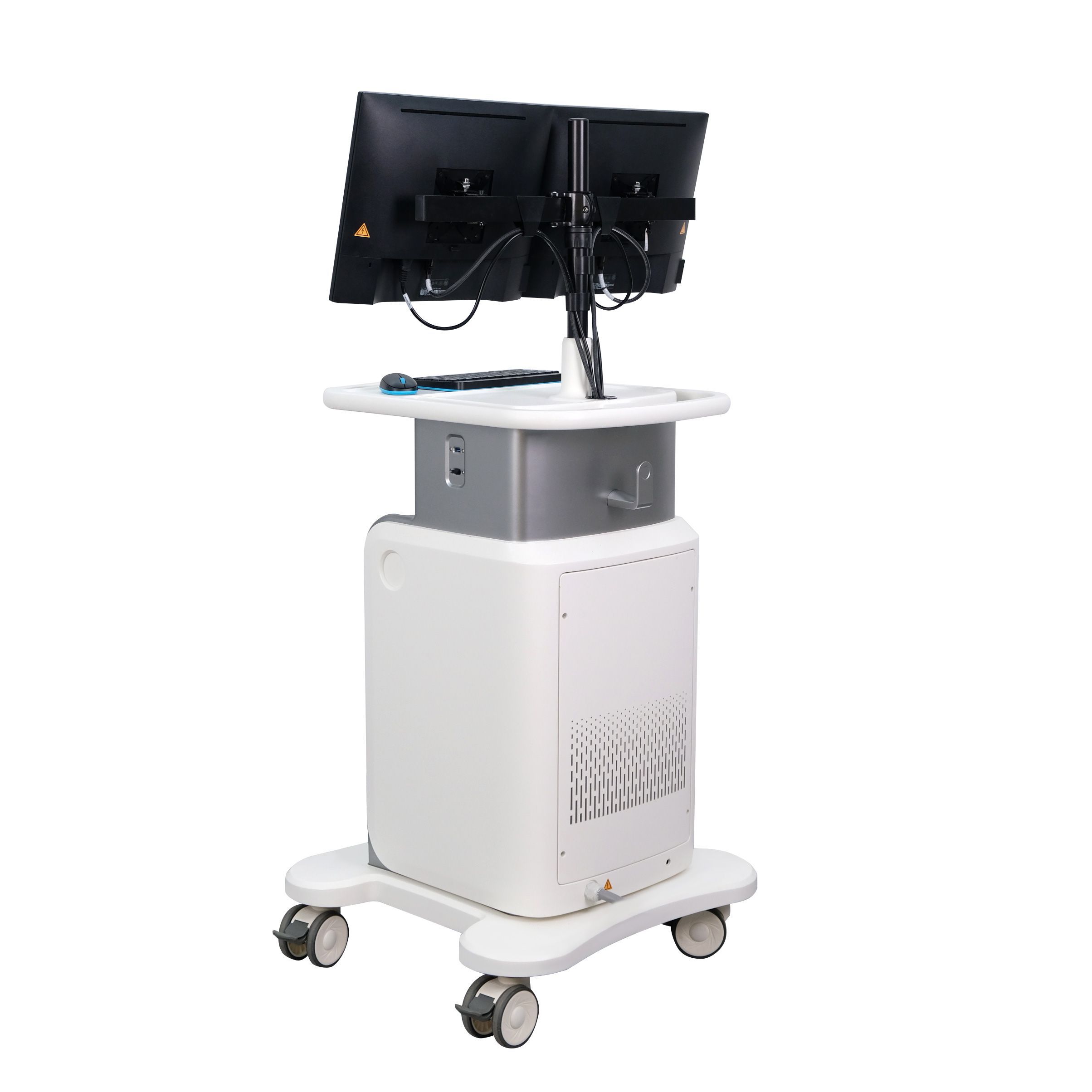

Workstation |
|
|
Height |
153cm |
|
Width |
85cm |
|
Depth |
66cm |
|
Weight |
40kg |
|
Image transmission |
Wired/Wireless |
|
Exposure |
Wired/Wireless |
